Single stage low pressure  oil injection screw compressor

 Pressure range : 7.5 bar <P< 10 bar

       FAD 6-83 m³/min

• Special low pressure screw air end, even low discharge  pressure also has different pressure ratio design.

• Special low pressure oil separation system, built-in baffle to  ensure low fuel consumption.

• Larger oil separator and larger Oil filter, ensure that the oil  content in the exhaust is controlled below 3ppm.

• The cooling system designed based on the ambient  temperature of 46℃, use special coolant.

• Typical application

   Pneumatic ash transport in thermal power plant, pneumatic  transport in cement/glass factory, textile and chemical fiber enterprises.

Note：

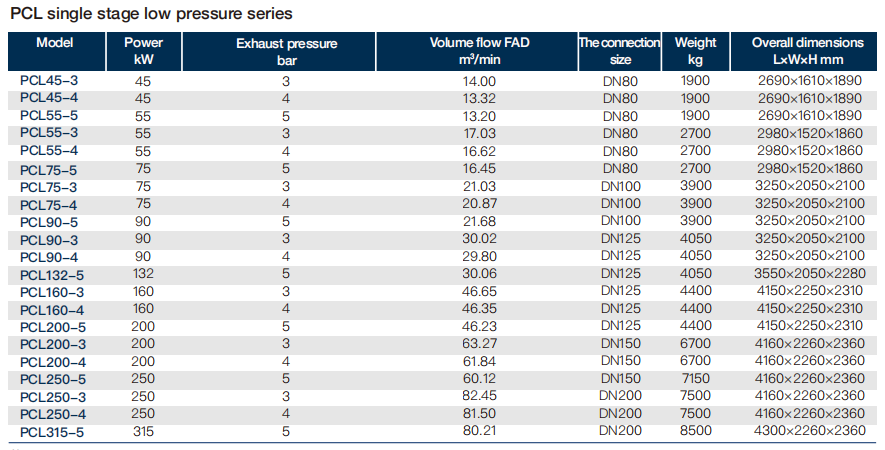

1.The above parameters are based on the inlet conditions at pressure 1.0Bar(A), temperature 20℃ and relative humidity 0%, tested   according to ISO 1217 4th Edition Annex E standard.

2.The data in the table is applicable to 50Hz power supply. Please contact us for the parameters of 60Hz power supply.

3.PurAir products continue to improve, please request the latest data sheet.
